在工业质量节造和资料钻研方面，您和您的团队有着一样的指标：提供信心百倍的靠得住了局。通过有助于日常工作的软件，令您的团队工作速度更快，效能更高，了局更精准。来自 Leica Microsystems 的 Leica Application Suite X (LAS X) 是工业利用中进行直接成像和纪录的软件平台。

• 使用独有的全屏图像专一于您的样品

• 凭据您的必要显示和发展职能按钮

• 为您的测试法式定造汇报模板

• 设置单独的用户配置文件，凭据操作员技术配置显微镜和摄像头

  清澈、全面、可定造

  软件可更急剧、更轻松、更**地执行尺度工作；同时并不复杂。LAS X 占有整洁的用户界面和导航，使工作流程清澈直观，任何团队成员都能轻松把握。

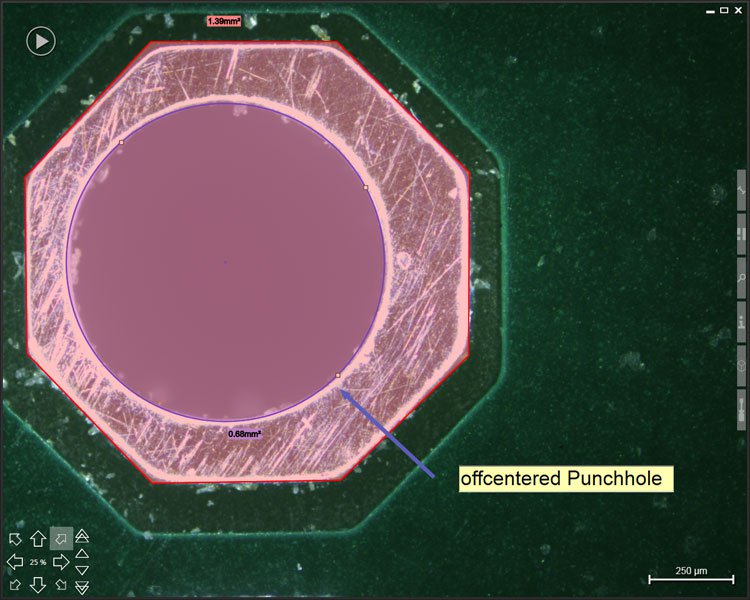

  样品全屏显示

  全屏查看样品:

  单击瞬间，实现汇报!

  LAS X 为您提供丰硕的汇报模板。

  此表，您还可凭据自己的需要定造模板，并与您的团队共享。这样能够确保您的团队提交一致的汇报。创建靠得住的丈量了局汇报，从未如此单一。

  创建靠得住的汇报

  为丈量了局创建靠得住的汇报从未如此单一。
  保留和挪用

  工作的可再现性对于很多利用都极度沉要。

  轻松复造设置

  切如此单一,只需一次单击，即可轻松再现之前的显微镜设置和成像参数。

  定造化用户配置文件

  一个团队是由多个成员组成的，他们的显微镜技术把握水平分歧，要实现的具体工作也分歧。

  主管对此难以应对？当然不会！

  配置文件凭据技术

  无论是显微镜新手或专家，LAS X 令主管可能凭据每个团队成员的技术水平和工作创建独立的用户配置文件，确保您的团队获得预期的靠得住了局。
  LAS X software tools

  选择“工作利器”

  LAS X 为各类专业利用提供一系列附加软件？楹妥壹督饩龉婊，因而您能够对显微镜系统进行量身定造，使其成为专用的高机能工具，以应对当前和未来挑战。

  4008云顶集团全球利用专家团队极度愿意为您提供软件？榈挠帕佳≡窠ㄒ。

  相识4008云顶集团软件？槿艉挝峁└弥С郑

  LAS X Software Modules for Industrial Applications

  Microscopy tasks in industrial applications such as quality control and quality assurance, failure analysis, research and development as well as materials science and forensics are varied and diverse. From image acquisition to reporting, software plays an integral part every step of the way.

  To provide the specific software capabilities you need, Leica Microsystems offers modules that complement the LAS X software. Choose from a range of software modules – see below for more information on what our modules can do for you.

  If you require additional information or advice, please so not hesitate to contact us.
  Extend LAS X capabilities in image acquisition and documentation of single images

  Name	Description
  LAS X User Management	Create user groups with different access levels. Allow or restrict individual functionalities for respective access levels.
  LAS X Extended Annotation	Annotate your images with text in various fonts and colors, graphics, or measurements.
  LAS X Measurements	Measure parameters such as length, area, diameter, angle, or perimeter of objects you mark with adjustable tracing lines, drawing directly in the live images. Add labels for easy analysis. Apply measurements to several images to determine statistical trend and compare data in measurement templates. Apply long-distance measurements that span more than a single field of view.
  LAS X Reticule	Display digital reticules, such as grain size, lines, circles, cross hairs and counting grids, on real-time images as electronic overlays for inspection, measurement, point counting, and comparison. Unlike eypiece reticules, digital reticules adjust to the magnification or zoom of the microscope.
  LAS X Live Stream Movie	Capture images at set time intervals automatically to create movies to stream. Download as individual images or AVI files.

  Extend LAS X capabilites in image acquisition, measurement and analysis in 2D and 3D

  Name	Description
  LAS X Live Image Builder	Create images that are bigger than a single field of view. Obtain a single in-focus image, if shallow depth of field provides only a partly focused image.
  LAS X Z-Control & SW Autofocus	Create a single sharp image by capturing a stack of images at different focus positions and combining them automatically into an Extended Depth of Focus (EDOF) image.
  LAS X Extended Depth of Field	Create sharp 2D images from several partially in-focus images. In connection with the 3D Surface Viewer, creation of 3D images is also possible.
  LAS X Stitching	Create 2D images from multiple tiled images captured automatically. Obtain a spiral scan to capture only the region which interests you most. Single images can be retreived and analyzed with LAS X 2D Analysis.
  LAS X 3D Surface Viewer	View 3D surfaces created from LAS X Extended Depth of Field.
  LAS X 3D Surface Measurements	Measure 3D surfaces created from LAS X Extended Depth of Field in the LAS X 3D Surface Viewer.
  Extend LAS X capabilities in metallography

  Name	Description
  LAS X Nodular Cast Iron Expert	Assess cast iron, adhering to industry standards including ASTM E247, ISO 945-2 and JIS5502. Use this software module for ductile irons to identify graphite nodules and place them into shape and size classes. Assess the ferrite and pearlite content and combine the results from these separate analyses.
  LAS X Decarburisation Expert	Identify and analyse the depth of decarburisation in non- or low-alloyed steel. Automatically calculate the functional decarburization depth as a function of the amount present in the unaffected interior and your product specifications.
  LAS X Metallography Toolbox	Assess, analyze, and measure metals, alloys, layers and coatings, adhering to laboratory requirements by incorporating analysis methods utilized in industry standards. Document your results in a Microsoft Excel report.
  LAS X Grain Expert	Evaluate the properties of materials by analysing grain size to help determine the characteristics of the final product. The incorporation of industry standards ensures your analyses conform to your laboratory requirements.
  LAS X Phase Expert	Measure multi-phase microstructures indentified by their distinctive color or contrast in materials and metallurgy laboratories. For example, reflectivity of components in oil-shale; polarisation colors of constituents in a thin rock section for modal analysis. Determine the occurrence of these phases with reference to the overall image or to one of the selected phases.
  LAS X 2D Analysis	Detect, measure, and evaluate features and particles of powders, fiber cross-sections, pigments using a wide range of parameters. Use histograms, pie charts and statistics to illustrate results that can be exported to Microsoft Excel.

• 单张图像摄取和纪录

• 2D 和 3D 模式下的摄取、丈量与分析

• 金相学

• 汇报导出，一键实现！

• 可对汇报模板进行调整，以合用于您的测试法式

• 使用全屏尺寸专一于样品 — 职能按钮在不必要时通明化

• 单击鼠标即可激活职能按钮 (例如照明设置、摄像头、丈量)

• 自动保留职能让您充斥信心，绝不会错失任何细节
